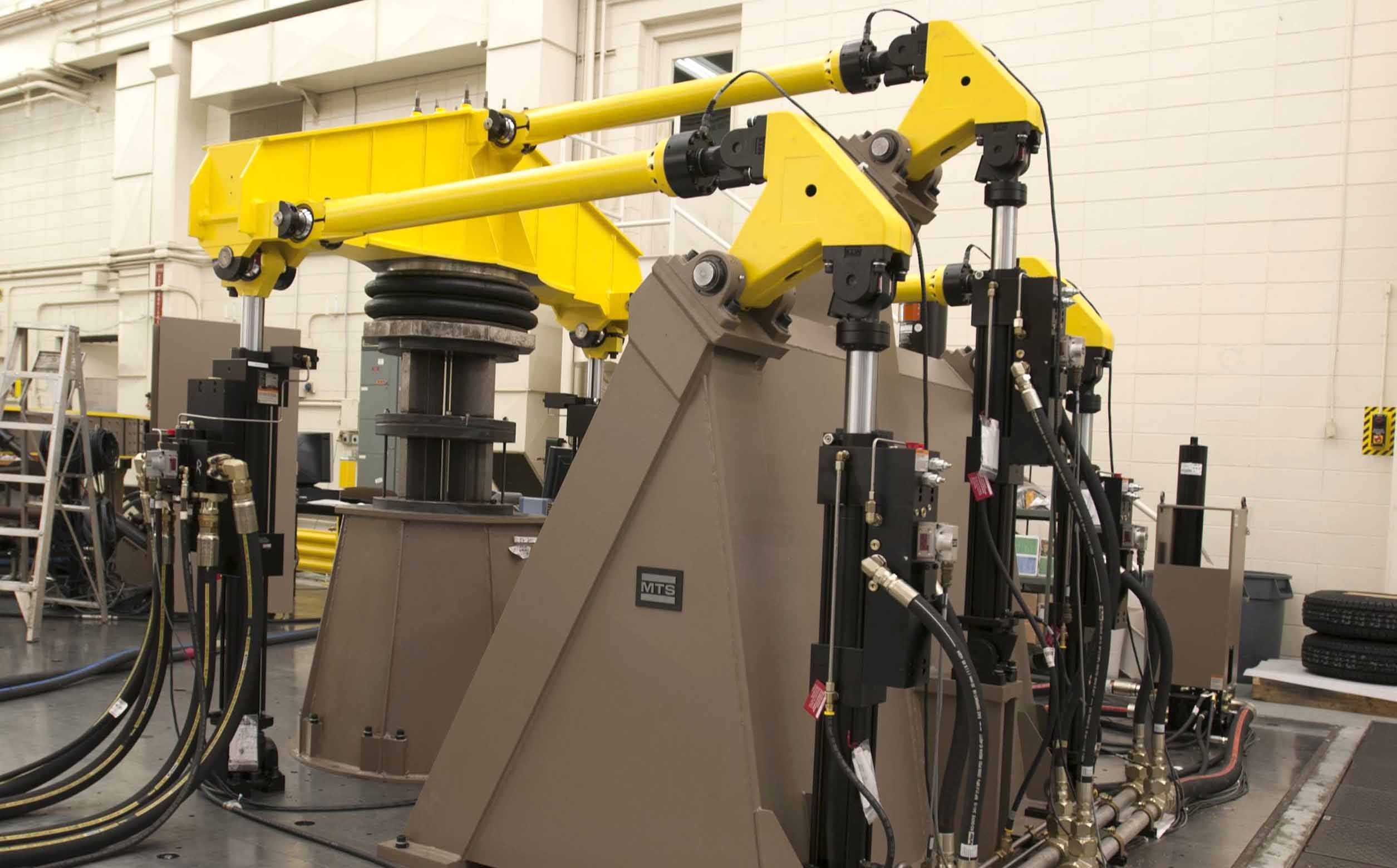

Air Spring Test System

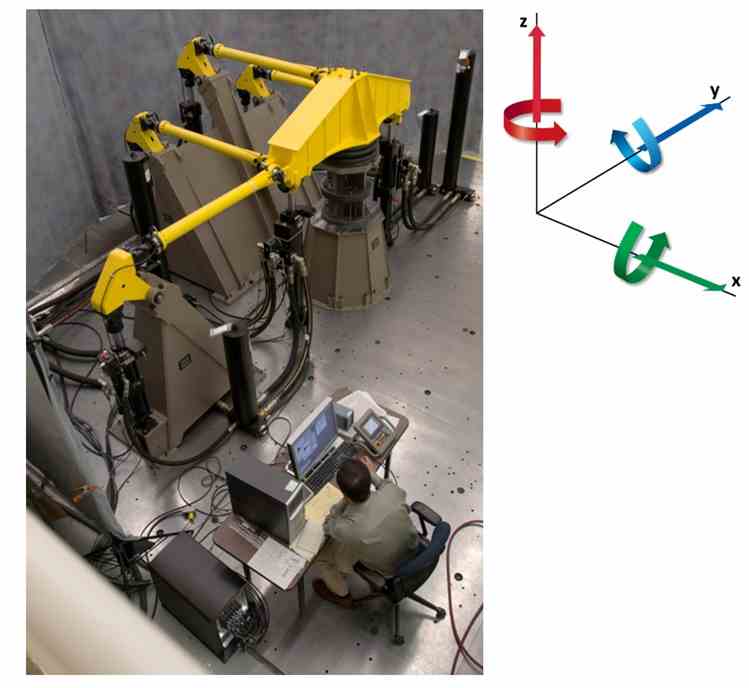

Apply precise loading in six degrees of freedom to rolling stock air springs to evaluate durability and measure stiffness, multi-axial response and damping characteristics. These robust multi-axial systems employ state-of-the-art MTS controls, application software and hydromechanical technologies to improve the noise, vibration and handling aspects of rolling stock ride quality.
Applications
Test Specimens
Key Product Features
Innovative Technology
RPC software and FlexTest controllers enable tight coordination of 6DOF for unmatched control/response
Durable / Reliable
Robust, proven mechanical design features long-lasting, plasma-coated MTS DuraGlide actuators
Versatile
Capable of testing a wide variety of rail components, including air bags, springs and elastomeric components
Precise
Multi-axial reaction load cell maximizes measurement accuracy and repeatability
Technical Overview
|
Vertical (z) |
|
|
Force |
200 kN |
|
Displacement |
+/- 175 mm |
|
Longitudinal (x) |
|
|
Force |
50 kN |
|
Displacement |
+/- 75 mm |
|
Lateral (y) |
|
|
Force |
75 kN |
|
Displacement |
+/- 125 mm |
|
Roll |
+/- 3.5 degrees |
|
Yaw |
+/- 3.5 degrees |
|
Pitch |
+/- 3.5 degrees |
