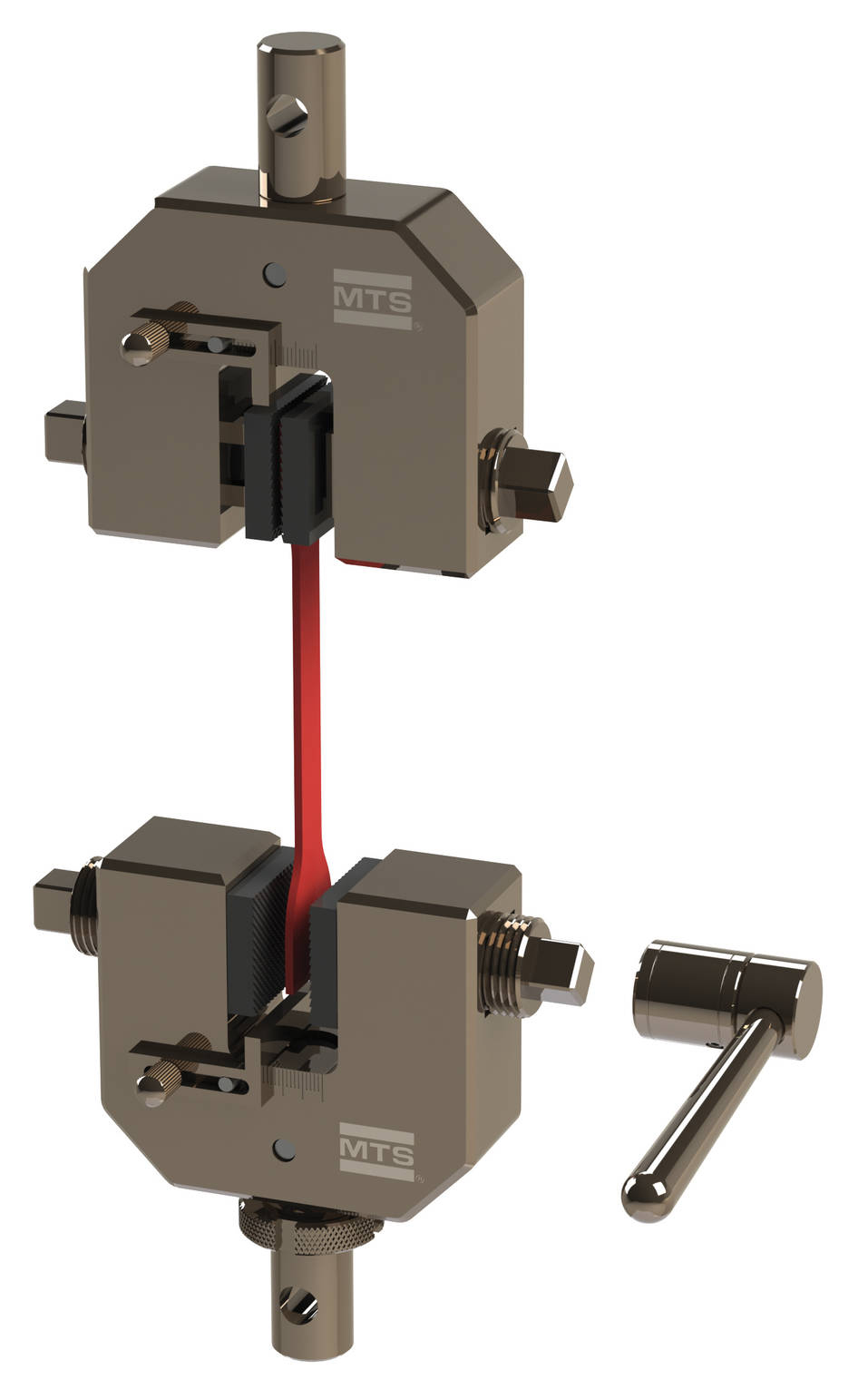

Exceed 10 kN Screw Action Grips

Specifications

Model

DSA104B

Part Number

100-302-671

Rated Force

10 kN (2,250 lbf)

Temperature Range

Room temperature

Weight

(Upper Grip)(Lower Grip)

1.90 kg (4.2 lb)

1.97 kg (4.3 lb)

Adapter style

(Upper Grip)(Lower Grip)

20 mm (0.8 in)

20 mm (0.8 in)

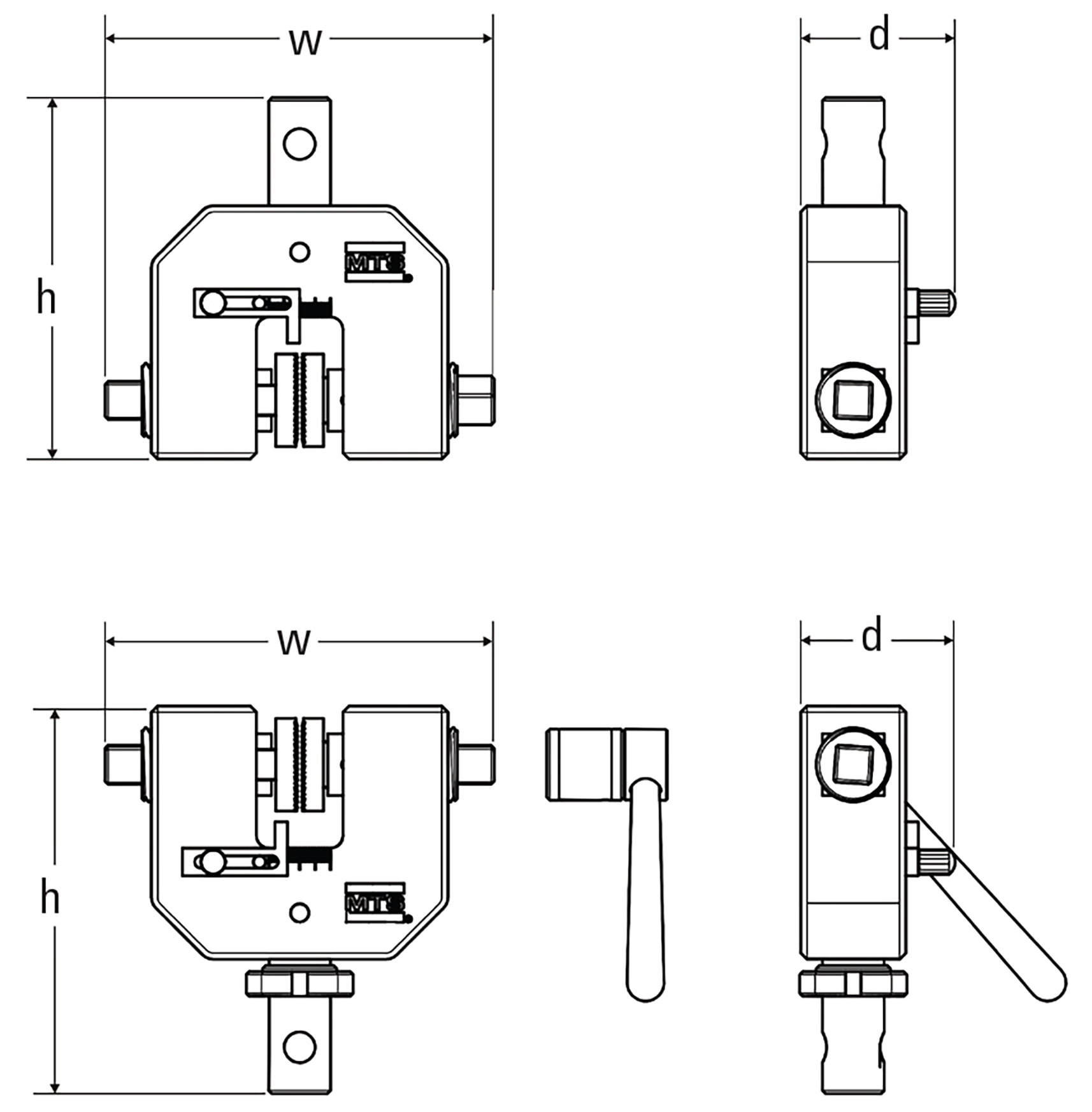

Dimensions (h*w*d) (Upper Grip) 117 mm × 123 mm × 48 mm (4.6 in x 4.8 in x 1.9 in)127 mm × 123 mm × 48 mm (5 in x 4.8 in x 1.9 in)

                                (Lower Grip)  123 mm × 123 mm × 48 mm (5 x in 4.8 in x 1.9 in)127 mm × 123 mm × 48 mm (5 in x 4.8 in x 1.9 in)

Optional Faces

Model

Description

Width

Opening Range

Compatible Grip

Part Number

DSA104B-09/11

Sawtooth

34 mm (1.3 in)

0-14 mm (0-0.6 in)

DSA503B

100-311-704

DSA104B-10

Corrugated

34 mm (1.3 in)

0-13 mm (0-0.5 in)

DSA503B

100-311-705

DSA104B-12

Corrugated

72 mm (2.8 in)

0-12 mm (0-0.5 in)

DSA503B

100-311-706
