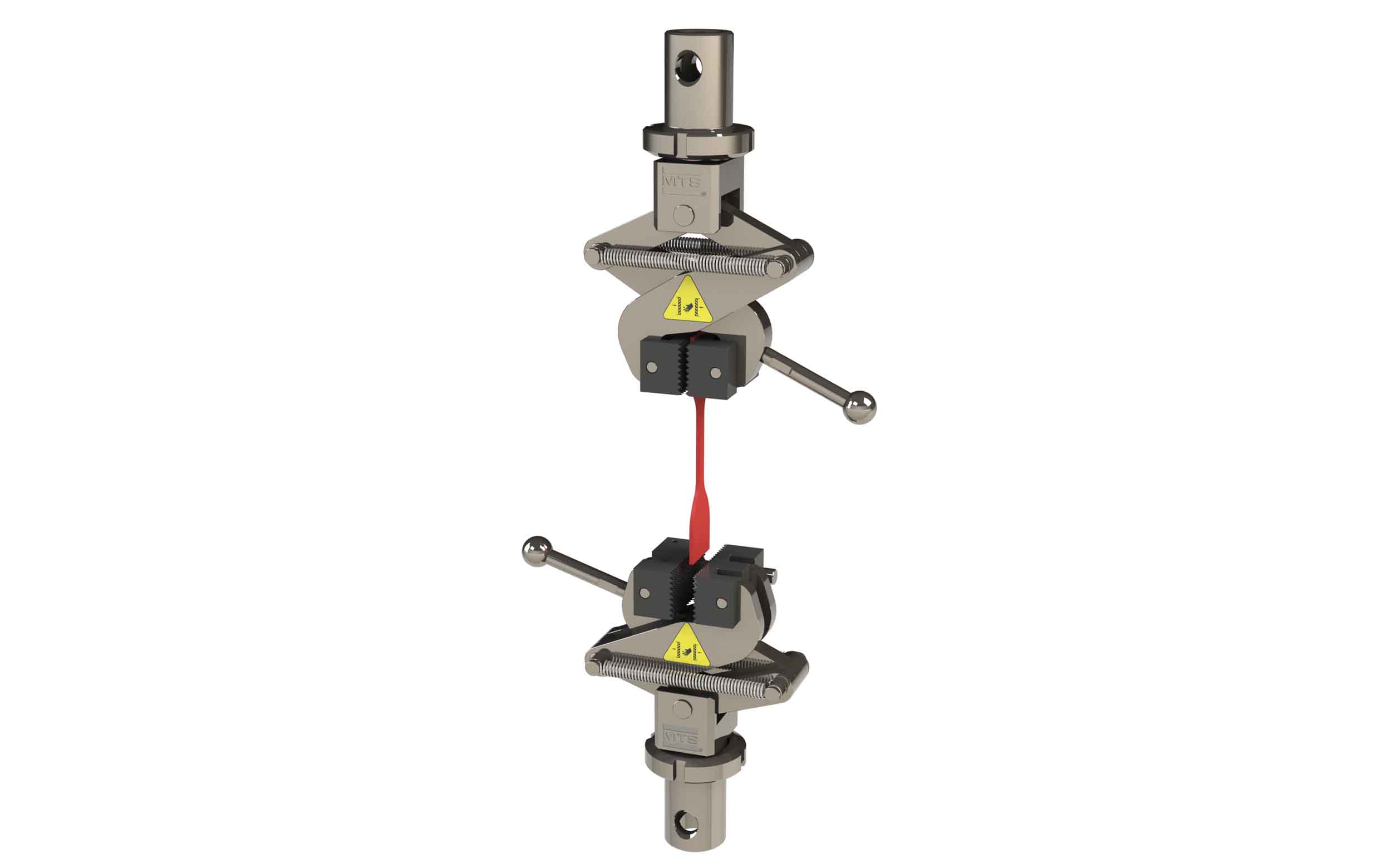

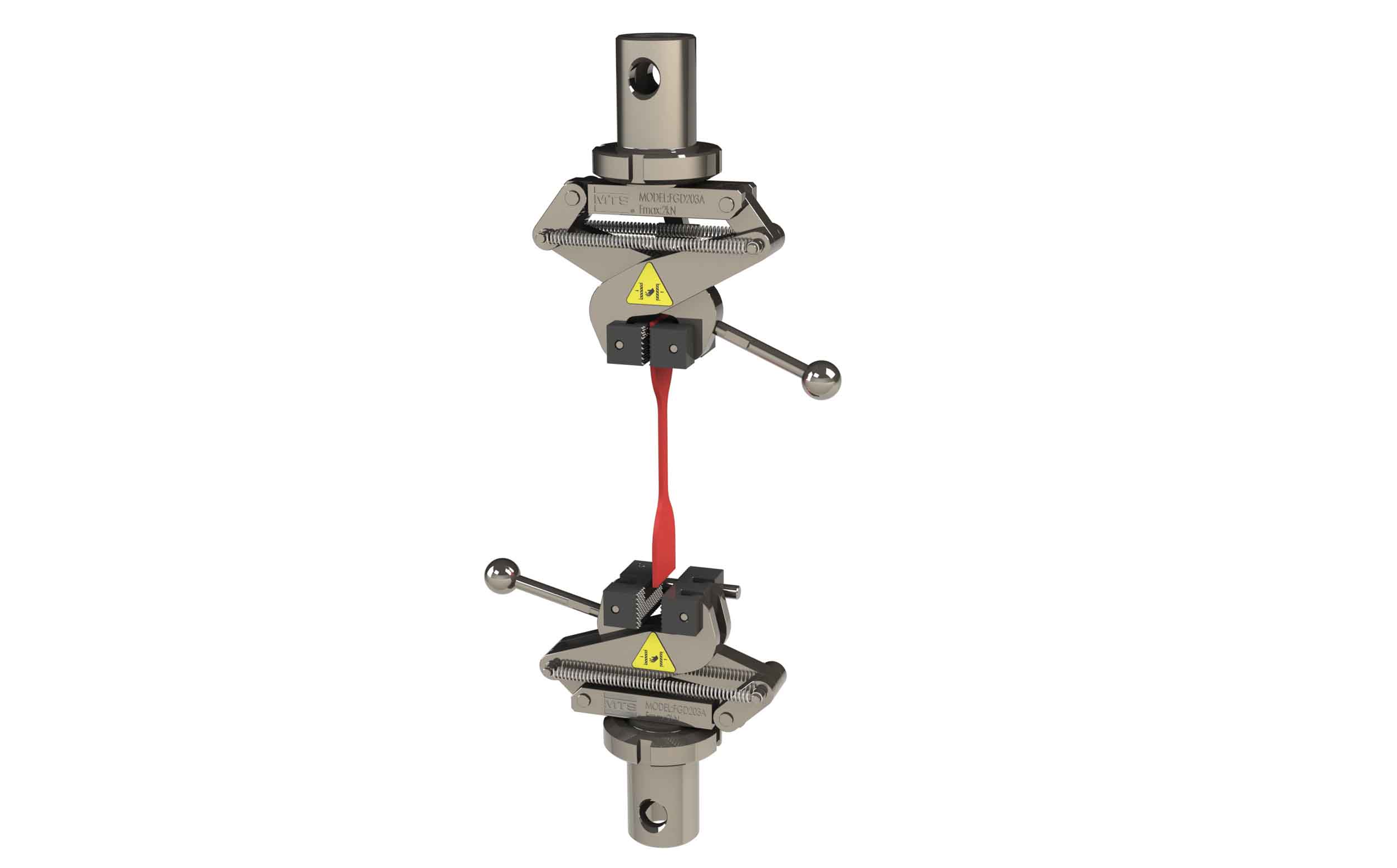

Fundamental Scissors Grips

MTS Fundamental™ Scissors Grips are value-priced tensile testing grips that feature self-tightening, self-aligning clamps. They are ideal for tensile testing of delicate flat, flexible specimens like foil, films, rubber and flexible polymers.

Applications

Test Specimens

See Full Product Info Request A Quote

Full Product Information

Fundamental Scissor Grips

Model	FGD203A	FGD503A
Part Number	100-231-401	100-231-402
Grip Type	Manual Scissors	Manual Scissors
Force Capacity	2 kN (450 lbf)	5 kN (1,124 lbf)
Upper Grip Weight	1.01 kg (2.2 lb)	1.74 kg (3.8 lb)
Temperature Rating	0° C (32° F) to 50° C (122° F)	0° C (32° F) to 50° C (122° F)
Attachment Type	D	D
Combined Upper/ Lower Grip Height	298 mm (11.7 in)	346 mm (13.6 in)
Grip Width	164 mm (6.5 in)	194 mm (7.6 in)

Integrated Specimen Interface

Model	FGD203A	FGD503A
Profile	Flat	Flat
Surface	Sawtooth Streel	Sawtooth Streel
Height	16 mm (0.6 in)	25 mm (1.0 in)
Width	30 mm (1.2 in)	40 mm (1.6 in)
Specimen	0-12 mm (0-0.5 in)	0-14 mm (0-0.6 in)
