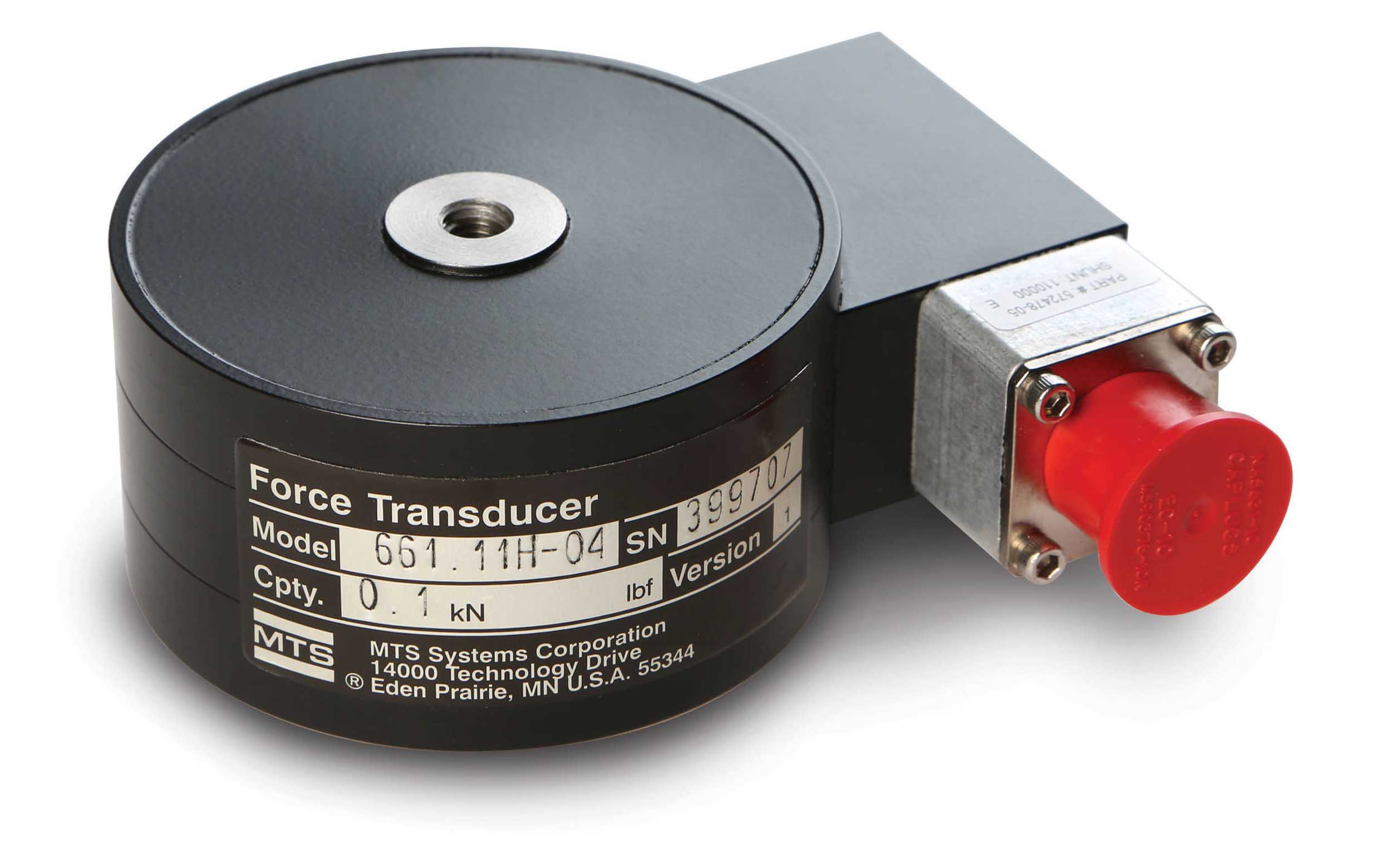

Acumen Tandem Load Cell Kits with TEDS

• Designed for Acumen Electrodynamic Test Systems, these axial, dynamic fatigue rated load cells can be mounted either to the actuator or to the T-slot table
• Dynamic performance - low deflection and high stiffness give you better dynamic performance
• High output - provides you with excellent resolution and reading accuracy
• Piloted load cell - simplifies load cell installation and minimizes the need for a separate alignment fixture
• Radially oriented beams - enable the unit to resist off-axis loads and moments for greater accuracy
• High degree of component concentricity and parallelism - provide you with greater accuracy during your test setup
• Unique proprietary wiring technique used on the bridge allows for minimal susceptibility to stray magnetic fields
• Interchangeable - simple mounting makes installation and changing easy
• Ability to stack lower force transducers to test smaller specimens in same load frame
• Integrated TEDS (Transducer Electronic Data Sheet)

Tandem Load Cell Kits with TEDS for MTS Acumen Systems

Metric Units

				FACTORY CALIBRATED KIT
MODEL	FORCE CAPACITY	THREAD SIZE	KIT PART NUMBER*	PART NUMBER*
661.11H	10 N	M6 x 1	057-560-111	057-560-112
661.11H	25 N	M6 x 1	057-560-113	057-560-114
661.11H	50 N	M6 x 1	057-560-115	057-560-116
661.11H-04	125 N	M6 x 1	057-560-105	057-560-110
661.11H-01	250 N	M6 x 1	057-560-104	057-560-109
661.11H-02	500 N	M6 x 1	057-560-103	057-560-108
*Kits include load cell, mounting hardware and spanner wrench
