Hybrid Simulation: Vehicle Bus Integration
Create a simulated vehicle bus system environment in which active or semi-active system ECUs are provided correct, mission critical signals to ensure that components, subsystems and full vehicles under test respond on a physical test rig as they would in a real-world service environment. MTS Vehicle Bus Integration solutions provide test engineers the tools they need to manage these complex on-board controls and effectively integrate advanced mechatronic systems into laboratory simulations.
Applications
Test Specimens
Key Product Features
Accurate / Repeatable
Ensures that every component present in the test specimen operates as expected, maximizing durability test fidelity
Industry Standard
Integrates FlexTest field bus interfaces and renowned RPC application software for playout, recording, data acquisition and event management
Unmatched Expertise
Leverages the unrivaled durability testing acumen of MTS Staff, R&D and Systems Integration engineers
Technical Overview

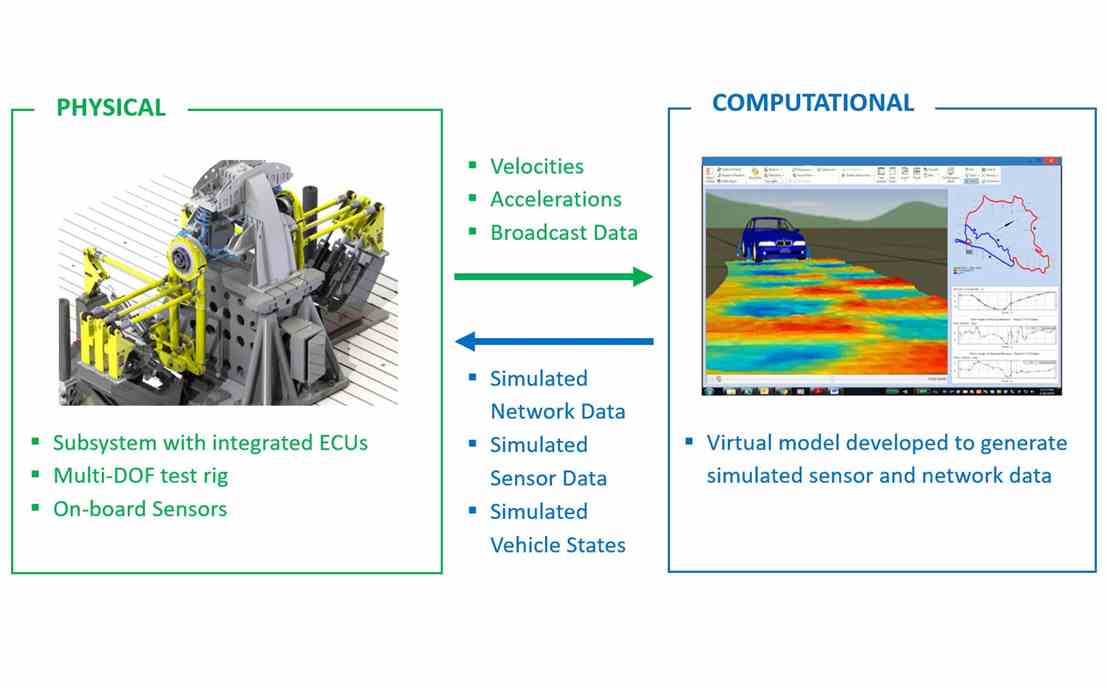

Modern vehicles contain a large number of electronic controllers which depend on a myriad of input signals to perform their mission. Providing these controllers with the correct inputs is critical when a vehicle subsystem is tested in isolation. MTS test systems possess the capability to create a simulated vehicle environment so that every component present in the test specimen operates as expected.
- A real-time vehicle model operates in conjunction with the test system to create the signals that are fed to the specimen electronic controllers.
- Vehicle network of various protocols such as CAN or LIN are physically implemented together with the corresponding messages.
