Gain insight into the fatigue properties of large, heavy-duty Off-Highway Vehicle (OHV) wheels and rims.

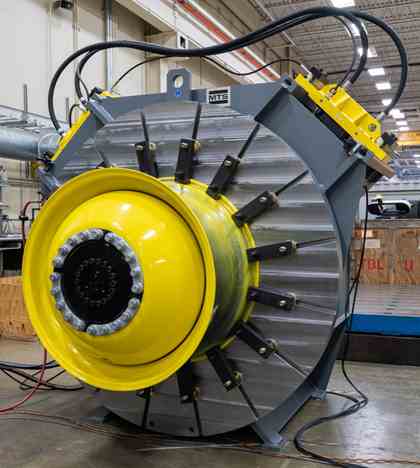

The MTS Off-Highway Vehicle (OHV) Wheel Fatigue Test System is used for conducting highly accurate and repeatable laboratory-based fatigue testing of large diameter (406-1524 mm) wheels and rims used on heavy agricultural, mining, forestry and construction machinery, and large commercial vehicles.

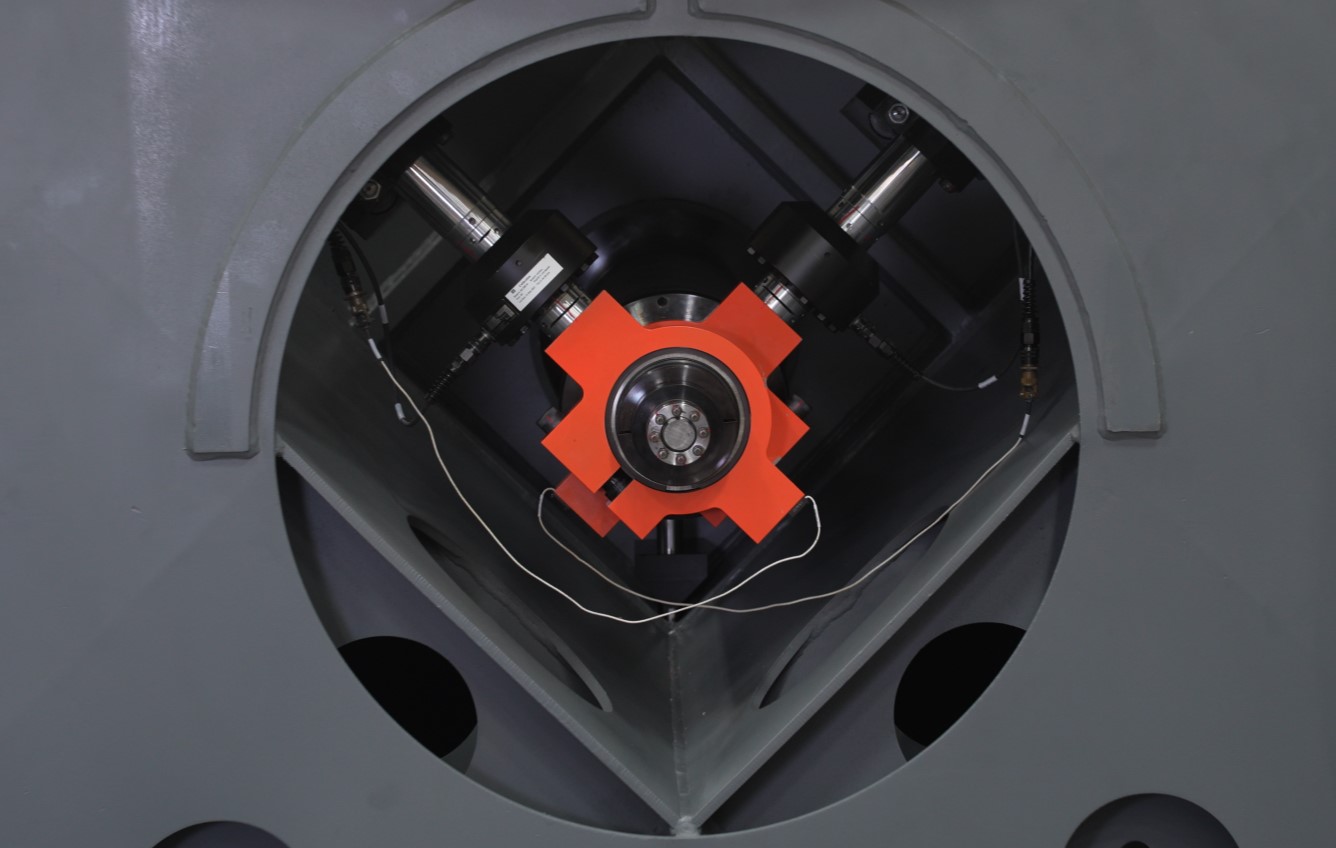

Two perpendicularly arranged MTS DuraGlide 244 test actuators apply rotating load vectors to a stationary loading arm and the test specimen until the desired cycle count is reached or test limits are exceeded.

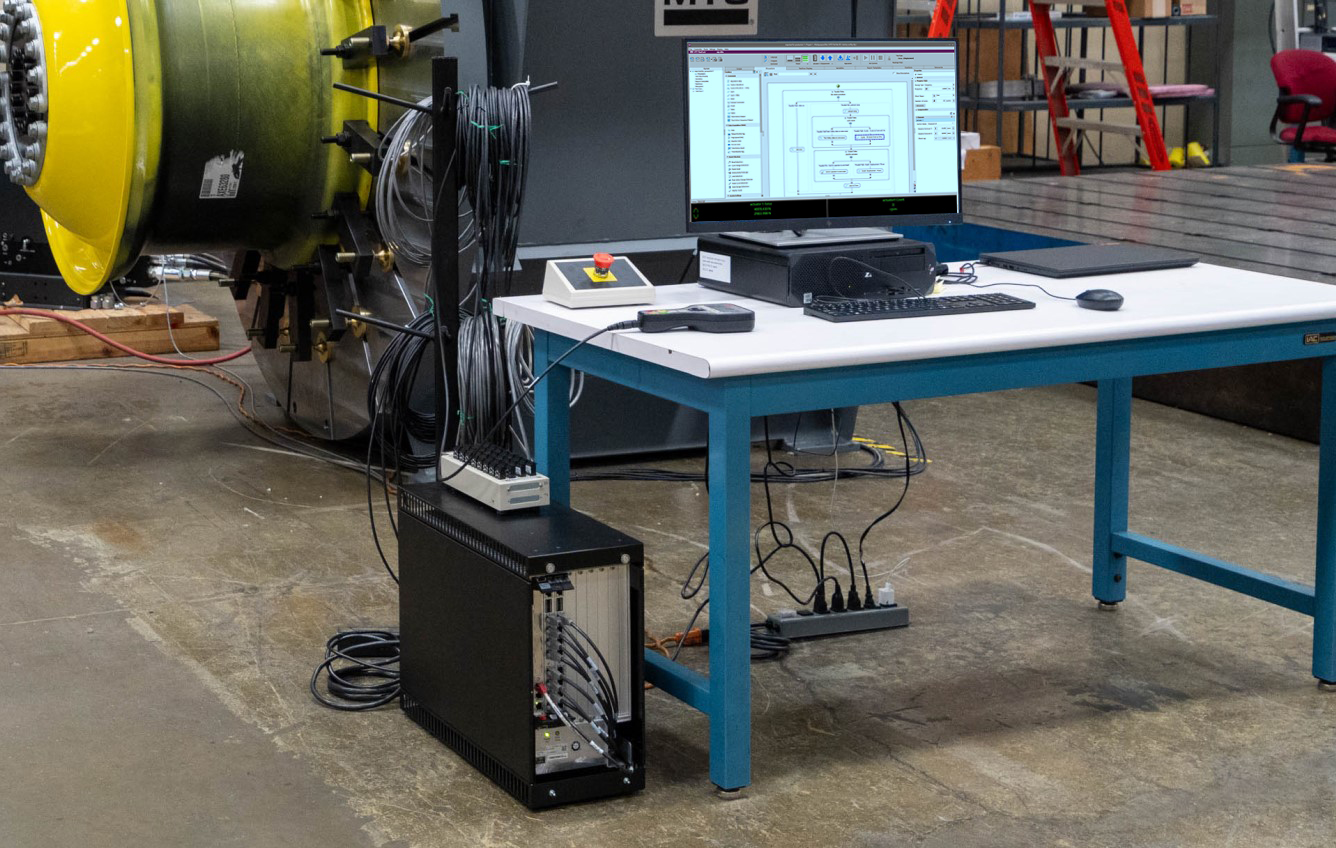

Versatile FlexTest controls and MTS TestSuite Multipurpose Elite software enable test engineers to easily define and execute custom fatigue tests and meet ISO 3894, SAE J267 and SAE J328 standardized testing requirements.

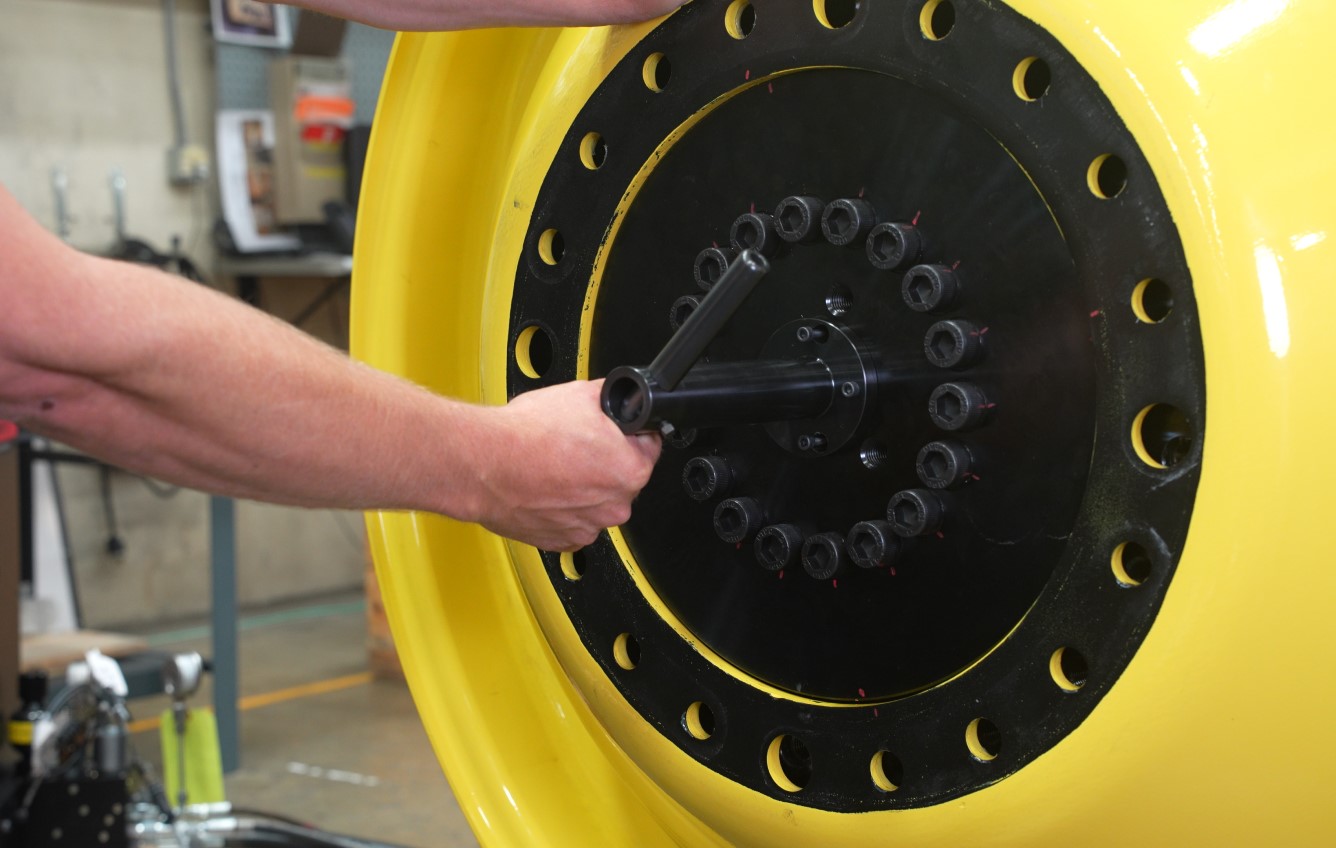

Built-in alignment guides ensure easy and accurate installation, centering and clamping of large wheel specimens to the heavy-duty steel reaction frame.
